Pre- and Post-Classification

← Slicer Framework | ● | Ring Artifacts →

Pre-classification: Transfer function is applied on scalar values. Afterwards tri-linear interpolation takes place.

Post-classification: Tri-linear interpolation of scalar values. Afterwards transfer function is applied on interpolated scalar values.

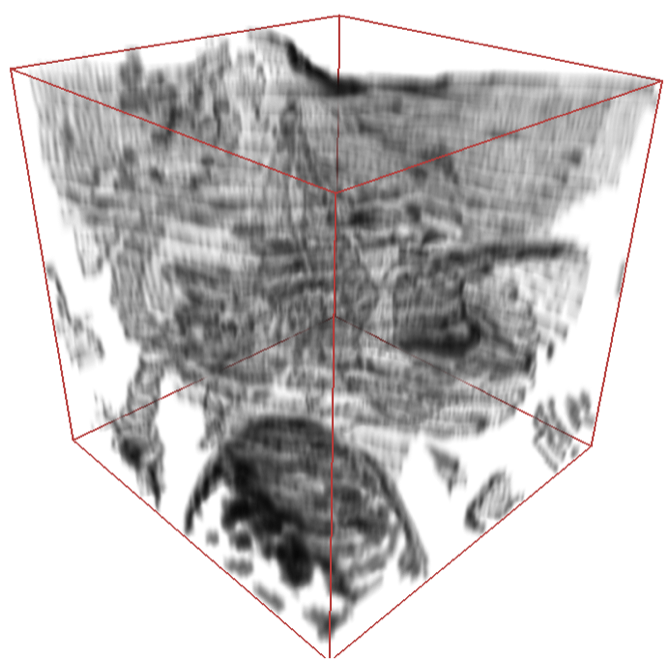

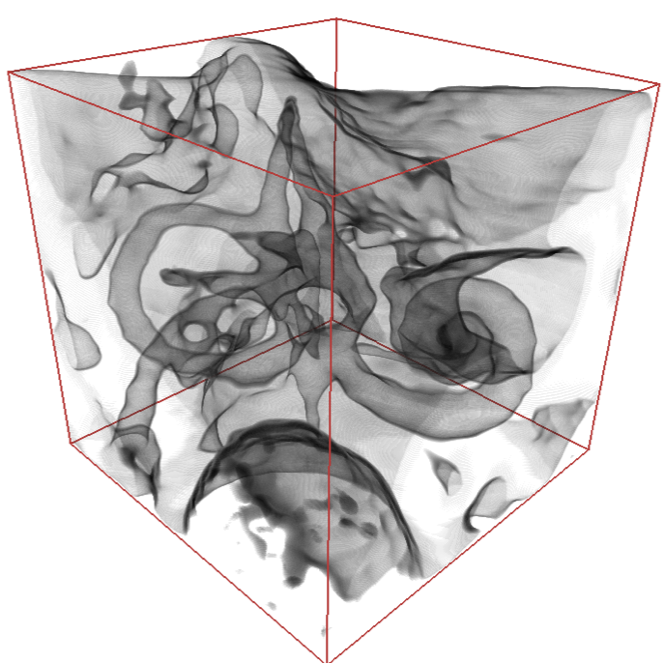

Middle-ear with Pre- vs. Post-Classification:

TF-Pre TF-Post images by Christoph Rezk-Salama and Peter Hastreiter

Conclusion: Post-classification is by far superior!
